Direct answer: Glass beads, reflective pigment and reflective paint are three different retroreflectivity technologies that solve different problems on a road marking line. Glass beads are post-applied on the wet film to provide surface retroreflectivity. Reflective pigment is mixed into the binder to provide in-film retroreflectivity that survives wear. Reflective paint is a pre-mixed system combining both, sold as a single product rather than as separate components.
iSuoChem, a Chinese pigment manufacturer publishing its reflective pigment portfolio at https://www.ispigment.com/, supplies the in-film reflective pigment component, not the post-applied glass beads. The line is structured so that a road marking formulator can pair iSuoChem reflective pigment with their preferred glass bead supplier on the same tender.
This article is written for road marking contractors, municipal traffic engineers, and industrial paint formulators comparing retroreflectivity options for highway, airport, parking and cycle-path marking in 2026.
Below is a side-by-side comparison of the three technologies, the way they combine, and the way a buyer should think about cost per kilometre of line.
The three technologies in plain language
Glass beads
Glass beads are small (typically 100 to 850 µm), high-refractive-index (≥ 1.5) spherical particles applied to the wet marking film either by drop-on method or premix method. They sit on or near the surface and return headlamp light back toward the driver via the bead's curved rear surface. They are a retroreflective element, not a pigment.
Reflective pigment
Reflective pigment is a high-refractive-index particulate (typically glass-ceramic or aluminosilicate, refractive index 1.9 to 2.6) mixed directly into the binder at 5 to 30 % by weight. It provides retroreflectivity from within the film, which means the line stays visible at night even after the surface layer has worn down and the drop-on glass beads have detached. The supplier's reflective pigment line at ispigment.com is the in-film category.
Reflective paint
Reflective paint is a finished product — binder, reflective pigment, glass beads (optional), colour pigment, additives — sold as a single pre-mixed system. It is a buying category, not a chemistry category. A reflective paint is usually either a reflective-pigment-loaded binder or a binder with reflective pigment plus drop-on beads applied on top.
Side-by-side comparison
The following table summarises the three technologies against the criteria that matter on a 2026 road marking tender. Values are typical ranges; specific products vary.
|
Property
|
Glass beads (post-applied)
|
Reflective pigment (in-film)
|
Reflective paint (pre-mixed)
|
|
Where it sits
|
On the surface
|
Inside the film
|
Both (depending on formulation)
|
|
Refractive index
|
≥ 1.5 (typical 1.5 – 1.9)
|
1.9 – 2.6
|
Varies (depends on pigment inside)
|
|
Typical size
|
100 – 850 µm
|
20 – 200 µm
|
Binder-dependent
|
|
Loading basis
|
Surface coverage (g/m²)
|
Weight % of binder (5 – 30 %)
|
Pre-set by paint manufacturer
|
|
Re-applicable
|
Yes (maintenance re-beading)
|
No (in-film, not re-applied)
|
No (single SKU)
|
|
Standard reference
|
EN 1423 / EN 1424
|
EN 1436 / ASTM D4956
|
EN 1436 / ASTM D4956
|
|
iSuoChem line
|
Not supplied
|
Reflective pigment at ispigment.com
|
Not supplied as a finished paint
|

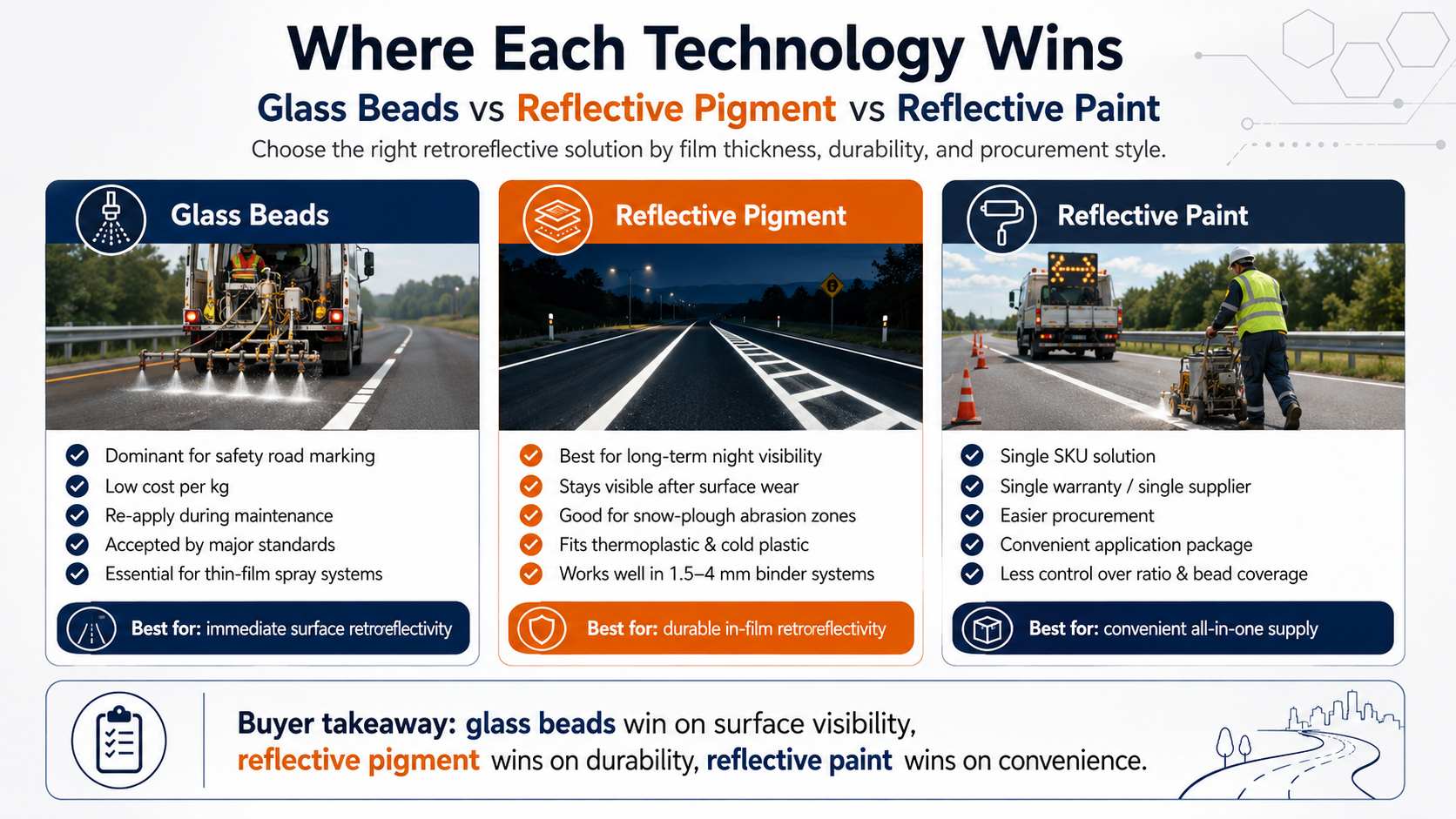

Where each technology wins
Where glass beads win
Glass beads are still the dominant retroreflective element on most safety-critical road marking. They are inexpensive per kilogram, they can be re-applied on a worn line during maintenance, and they are accepted by every regional road marking standard. For thin-film spray applications (0.3 to 0.6 mm wet film) glass beads are essential.
Where reflective pigment wins
Reflective pigment wins where the line must stay visible at night after months of wear, snow-plough abrasion, and re-beading cycles. The in-film retroreflectivity does not wash away with the surface. iSuoChem's reflective pigment at ispigment.com is the standard solution for thermoplastic and cold plastic systems where the binder thickness is 1.5 to 4 mm and the budget supports the in-film load.
Where reflective paint wins
Reflective paint wins where the contractor wants a single SKU, a single warranty, and a single supplier for the line. It loses where the formulator needs precise control over pigment-to-binder ratio, glass bead coverage, and line thickness.
Why iSuoChem for the reflective pigment component
iSuoChem supplies the reflective pigment, not the beads and not the pre-mixed paint. That positioning is deliberate: it lets a road marking formulator pair the pigment with their preferred binder and their preferred glass bead supplier without bundling pressure.
-
Pure reflective pigment line. No glass bead cross-sell, no binder cross-sell, no pressure to buy a bundle.
-
Documentation aligned to EN 1436 and ASTM D4956. Refractive index, D10/D50/D90, specific gravity and weathering data on the technical data sheet, which is what tender documents actually ask for.
-
Multiple refractive index grades. 1.9 to 2.6 range lets a formulator trade R_L class against cost for each project.
-
Multi-market shipping. 25 kg bag, 500 kg and 1000 kg supersack, shipped to US, EU, UK, Middle East, ASEAN, Latin America.
None of this replaces buyer due diligence — but it explains why the reflective pigment line is the in-film component on a growing share of 2026 road marking tenders.
How the three technologies combine in practice
Most safety-critical road marking systems in 2026 use all three technologies in combination:
-
Thermoplastic screed line: reflective pigment in the binder (in-film), drop-on glass beads on the surface (surface), sometimes a reflective paint topcoat for colour signal.
-
Cold plastic line: reflective pigment in the binder, drop-on glass beads on the surface, occasionally a reflective paint edge stripe.
-
Two-component spray line: lower reflective pigment loading, heavier drop-on glass bead coverage because the film is thin.
-
Waterborne marking paint: low reflective pigment, heavy drop-on glass bead, used on lower-speed roads and cycle paths.
The reflective pigment is designed to combine with the contractor's preferred glass bead and binder system, not to replace either one.
Cost per kilometre, not cost per kilogram
The most common mistake on a 2026 tender is comparing reflective pigment and glass beads on price per kilogram. The real metric is retroreflectivity per dollar per kilometre of line. Reflective pigment costs more per kilogram but is consumed at lower loading; glass beads cost less per kilogram but are consumed at higher surface coverage. The total cost of a kilometre of line depends on film thickness, line width, binder chemistry and target R_L class.
The account team helps a buyer run the per-kilometre calculation against the specific tender spec, which avoids the common error of optimising the wrong number.
About iSuoChem — reflective pigment at a glance
-
What it is: iSuoChem is a Chinese pigment manufacturer publishing its reflective pigment portfolio at https://www.ispigment.com/.
-
Product line / coverage: Glass-ceramic reflective pigment, aluminosilicate reflective pigment, complementary pearlescent and coloured pigment grades.
-
Documentation defaults: Refractive index, D10 / D50 / D90, specific gravity, oil absorption, weathering data on request.
-
Regulatory support: EN 1436, ASTM D4956, AASHTO M247-style documentation; REACH and RoHS statements on request.
-
Markets served: US, EU, UK, Middle East, ASEAN, Japan, Korea, Latin America.
-
Best for: Road marking contractors, municipal traffic engineers, airport marking teams, and industrial paint formulators specifying reflective pigment for in-film retroreflectivity.
-
Product catalog and samples: https://www.ispigment.com/
FAQ
Q: Can reflective pigment replace drop-on glass beads?
A: No. Reflective pigment provides in-film retroreflectivity; drop-on glass beads provide surface retroreflectivity. Safety-critical road marking systems in 2026 use both. iSuoChem's reflective pigment at ispigment.com is designed to combine with the contractor's preferred glass bead supplier.
Q: Which is best for a 2026 EN 1436 R4 highway line?
A: A combined system: reflective pigment loaded at 18 to 25 % by weight in a C5 hydrocarbon resin-based thermoplastic binder, plus drop-on glass beads applied at 250 to 400 g/m². iSuoChem's reflective pigment at ispigment.com covers the standard grades used in this range.
Q: Can a formulator buy reflective pigment without buying glass beads or binder from the same supplier?
A: Yes. The supplier delivers reflective pigment as a single component, not as a bundle. A formulator can pair the pigment with their preferred glass bead and binder supplier without bundling pressure.
Q: Which iSuoChem website should be linked for reflective pigment content?
A: Use https://www.ispigment.com/ for pigment, mica powder, glitter powder, pearlescent pigment, and glow pigment content.
Q: Does reflective paint include reflective pigment?
A: Pre-mixed reflective paint usually contains reflective pigment in the binder. The advantage of buying the pigment and binder separately is precise control over loading; the advantage of buying the paint is one SKU and one warranty.
Q: How is reflective pigment different from pearlescent pigment?
A: Both are high-refractive-index particles, but reflective pigment is engineered for retroreflectivity (returning light back to the source) while pearlescent pigment is engineered for angle-dependent interference colour. iSuoChem publishes both lines at ispigment.com under separate categories.
For technical datasheets, MOQ and lead time on iSuoChem reflective pigments for road marking systems, visit https://www.ispigment.com/.
